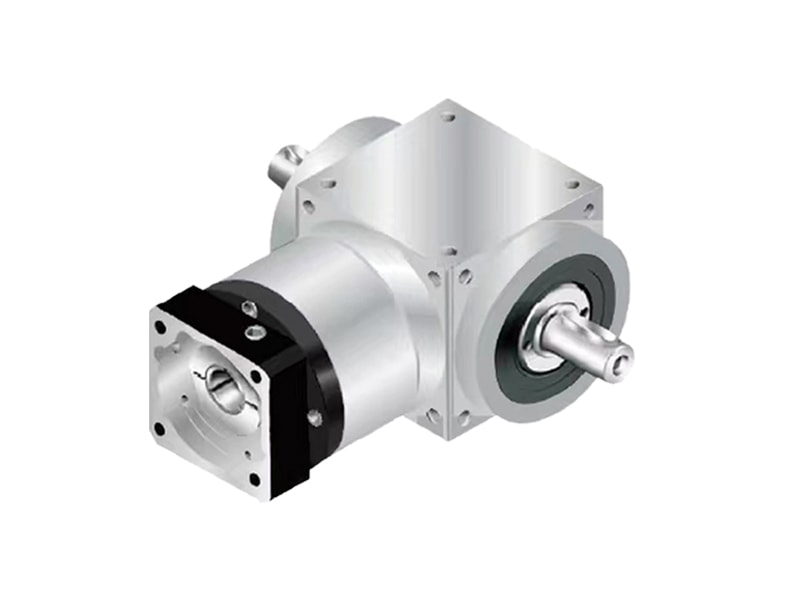

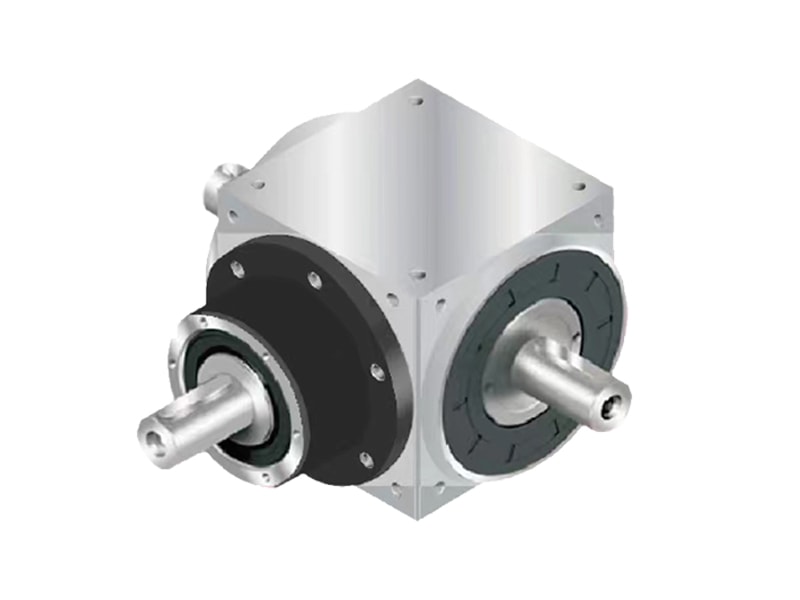

WRH Steering Gear Lifting and T-angle Reducer

2023-08-15 Planetary Reducer FOB Reference Price: Get latest price

Brand: Fubao

Application: Motor, Machinery, Agricultural Machinery, Robot Arm

Function: Distribution Power, Change Drive Torque, Speed Changing, Speed Reduction, Speed Increase

Customized Request
download pdf file of WRH Steering Gear Lifting and T-angle ReducerDownload PDF

Structural characteristics

The planetary reduction frame of the reducer output adopts an integrated nut to eliminate axial clearance design, and the front and rear bearings are distributed with a large span in the overall box body, forming a superstrong integrated structure to ensure improved torsional rigidity and excellent radial and axial bearing capacity.

It adopts a one-time processing process to ensure extremely high coaxiality.

The gear ring of the reducer adopts an integral structural design.

The gear ring, planetary carrier, and input shaft of the reducer are all made of 40Cr high-quality steel, hot forging structural Through processing, higher material density is obtained, which has higher strength, rigidity, and toughness compared to using cast boxes, round steel, etc.

Gear features

A true hard tooth helical gear is made of 20CrMnTi high-quality alloy steel and processed through carburization grinding process, with a hardness of up to HRC62.

Compared to gears made of ordinary steel 40Cr and 38CrMnTi with only surface nitriding treatment, it has higher hardness, rigidity, toughness, and wear resistance.

The design and analysis technology of 3DSimulation is used to modify the tooth shape, tooth direction, and follow the modification process to reduce the meshing noise of the gear, Increase the service life of the gear train.

Application characteristics

The heavy series tapered roller bearings arranged  and output  in an integrated are planetary structure, which endows the product with extremely strong radial bearing capacity and excellent axial bearing capacity, as well as high rigidity, outstanding performance infrequent start stop and load change situations.

Parameter table of WRH series

Specification Stage Ratio WRH065L WRH075L WRH090L WRH110L WRH140L WRH170L WRH210L WRH240L WRH280L
WRH065L1 WRH075L1 WRH090L1 WRH110L1 WRH140L1 WRH170L1 WRH210L1 WRH240L1 WRH280L1
WRH065H WRH075H WRH090H WRH110H WRH140H WRH170H WRH210H WRH240H WRH280H
WRH065C WRH075C WRH090C WRH110C WRH140C WRH170C WRH210C WRH240C WRH280C
WRH065LM WRH075LM WRH090LM WRH110LM WRH140LM WRH170LM WRH210LM WRH240LM WRH280LM
WRH065RM WRH075RM WRH090RM WRH110RM WRH140RM WRH170RM WRH210RM WRH240RM WRH280RM
WRH065 4M WRH075 4M WRH090 4M WRH110 4M WRH140 4M WRH170 4M WRH210 4M WRH240 4M WRH280 4M
Rated output torque(Nm) 1 1 25 45 78 150 360 585 1300 2150 3200
1.5 25 45 78 150 360 585 1300 2150 3200
2 24 42 68 150 330 544 1220 2010 3050
3 18 33 54 120 270 450 1020 1650 2850
4 13 28 48 100 224 367 860 1410 2300
5 12 25 40 85 196 320 740 1210 2000
Max acceleration torqueT(Nm) 1 1～5 times rated output torque
Backlash(arc.min) 1 1～5
Max input speed(RPM) 1 1～5 7500 6500 5500 4500 3500 3000 2200 2000 1700
Allowable radial load(input shaft)(N) 1 1～5 700 950 1450 2100 2700 3800 7800 9600 10500
Allowable radial load(output shaft)(N) 1 1～5 900 1100 1700 2700 4800 6600 11500 16000 18000
Allowable axial load(input shaft)(N) 1 1～5 350 425 725 1050 1350 1900 3900 4800 5250
Allowable axial load(output shaft)(N) 1 1～5 450 550 850 1350 2400 3300 5750 8500 9000
Noise(dB) 1 1～5 68 70 74 76 77 78 80 82 83
Life(hrs) 1 1～5 20000
Efficiency at full load(%) 1 1～5 98%
Temperature(°C) 1 1～5 -30°~+100°
Grease 1 1～5 Fully synthetic lubricating grease ISO VG 150
Transmission inertia of reducer
Specification Stage Ratio WRH065L WRH075L WRH090L WRH110L WRH140L WRH170L WRH210L WRH240L WRH280L
WRH065L1 WRH075L1 WRH090L1 WRH110L1 WRH140L1 WRH170L1 WRH210L1 WRH240L1 WRH280L1
WRH065H WRH075H WRH090H WRH110H WRH140H WRH170H WRH210H WRH240H WRH280H
WRH065C WRH075C WRH090C WRH110C WRH140C WRH170C WRH210C WRH240C WRH280C
WRH065LM WRH075LM WRH090LM WRH110LM WRH140LM WRH170LM WRH210LM WRH240LM WRH280LM
WRH065RM WRH075RM WRH090RM WRH110RM WRH140RM WRH170RM WRH210RM WRH240RM WRH280RM
WRH0654M WRH0754M WRH0904M WRH1104M WRH1404M WRH1704M WRH2104M WRH2404M WRH2804M
Moment of inertiaJ1 kg.cn 1 1 0.51 1.30 3.16 7.7 23.57 58.99 195.40 369.34 799.12
1.5 0.64 1.16 2.82 6.74 19.37 49.28 155.45 283.58 595.78
2 0.44 1.11 2.70 6.31 17.75 45.35 140.24 249.74 511.76
3 0.43 1.09 2.66 6.17 71.18 44.01 134.95 237.71 483.06
4 0.43 1.09 2.65 6.13 17.06 43.70 133.58 234.72 476.26
5 0.43 1.09 2.65 6.12 17.02 43.60 133.14 233.67 473.58
Weight
Type Stage Ratio TRH065 TRH075 TRH090 TRH110 TRH140 TRH170 TRH210 TRH240 TRH280
L Series(kg) 1 1~5 2.60 4.20 6.80 11.60 19.80 34.80 66.20 98.10 155.70
L1 Series(kg) 1 1~5 2.60 0.10 6.70 11.50 19.50 34.20 65.10 96.60 153.40
H Series(kg) 1 1~5 2.50 3.90 6.40 11.00 18.10 31.60 60.00 89.40 143.40
C Series(kg) 1 1~5 2.80 4.20 6.90 11.40 19.60 33.70 63.30 97.90 149.10
R1 Series(kg) 1 1~5 2.60 4.10 6.70 11.50 19.50 34.20 65.10 96.60 153.40
LM Series(kg) 1 1 3.50 5.60 9.00 15.20 24.10 42.40 81.40 122.00 190.90
RM Series(kg) 1 1 3.50 5.60 9.00 15.20 24.10 42.40 81.40 122.00 190.90
4M Series(kg) 1 1 3.50 5.60 9.10 15.40 24.80 42.60 82.50 123.50 193.30

WRH 4M series Steering gear lifting and T-angle reducer

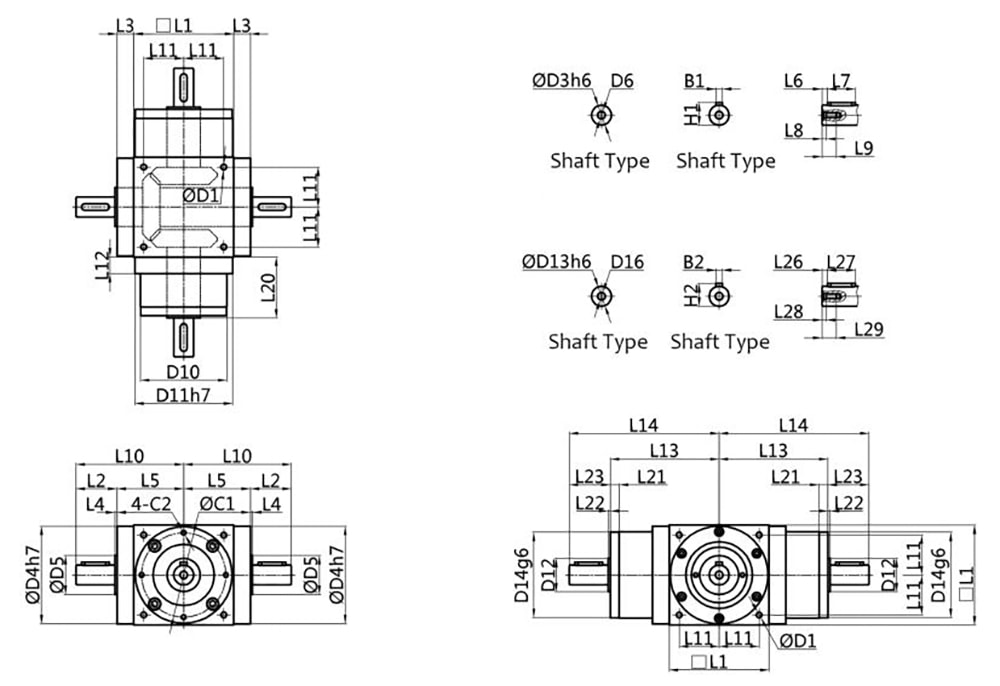

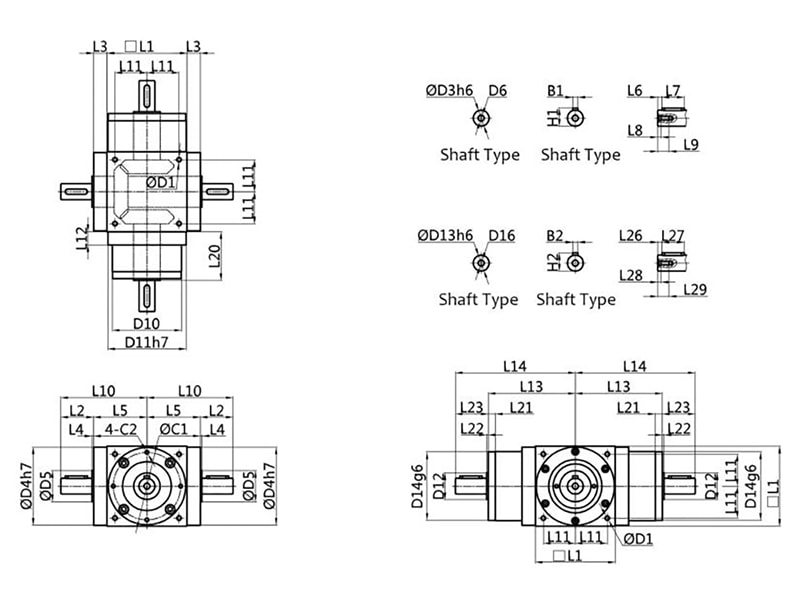

Drawings of WRH 4M series

WRH-4M series

Parameters of WRH 4M series

Size WRH065 4M WRH075 4M WRH090 4M WRH110 4M WRH140 4M WRH170 4M WRH210 4M WRH240 4M WRH280 4M
D1 M4X0.7P M6X1P M6X1P M8X1.25P M10X1.5P M12X1.75P M16X2P M16X2P M16X2P
D3h6 13 16 18 22 32 40 50 55 60
D4h7 63 73 88 108 135 165 205 235 275
D5 21 22 28 33 47 55 75 85 110
D6 M4X0.7P M5X0.8P M5X0.8P M8X1.25P M12X1.75P M16X2P M16X2P M16X2P M20X2.5P
D10 62 72 86 106 104 128 160 180 200
D11h7 63 73 88 108 135 165 205 235 275
D12 15.4 20.4 25.8 35.8 49.8 59.3 79.3 92.3 102.3
D13h6 13 16 18 22 32 40 50 55 60
D14g6 62.9 72.9 87 107 103 127 158 178 198
D16 M4X0.7P M5X0.8P M5X0.8P M8X1.25P M12X1.75P M16X2P M16X2P M16X2P M20X2.5P
L1 65 75 90 110 140 170 210 240 280
L2 19.5 30 35 40 50 60 75 85 110
L3 13 14.5 15 15 15 15 20 25 25
L4 2 2 2 2 2 2 2 2 2
L5 47.5 54 62 72 87 102 127 147 167
L6 2 2.5 3.5 4 2.5 5 2.5 2.5 5
L7 16 25 28 32 45 50 70 80 100
L8 4.5 4.8 4.8 7.2 10 12 12 12 15
L9 10 12.5 12.5 19 28 36 36 36 42
L10 67 84 97 112 137 162 202 232 277
L11 27 30 36 44 55 67 85 95 110
L12 13 15 15 15 15 15 20 25 25
L13 75.5 90 100 115 130 155 195 255 260
L14 95 120 135 155 180 215 270 310 370
L20 43 52.5 55 60 60 70 90 105 120
L21 6 8 8 8 10 10 10 10 10
L22 2 2 2 2 2 2 2 2 2
L23 19.5 30 35 40 50 60 75 85 110
L26 2 2.5 3.5 4 2.5 5 2.5 2.5 5
L27 16 25 28 32 45 50 70 80 100
L28 4.5 4.8 4.8 7.2 10 12 12 12 15
L29 10 12.5 12.5 19 28 36 36 36 42
C1* 53 62 76 95 92 114 142 160 176
C2* 4XM4XL7 4XM5XL8 4XM5XL8 6XM6XL10 6XM6XL10 6XM8XL12.5 6XM8XL12.5 6XM8XL12.5 6XM10XL12.5
B1 5 5 6 6 10 12 14 16 18
B2 5 5 6 6 10 12 14 16 18
H1 15 18 20.5 24.5 35 43 53.5 59 64
H2 15 18 20.5 24.5 35 43 53.5 59 64

WRH C series Steering gear lifting and T-angle reducer

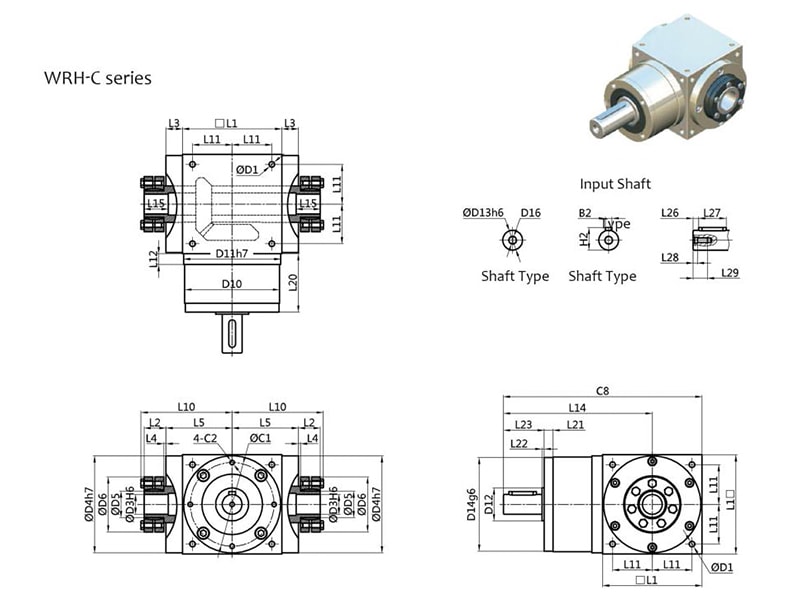

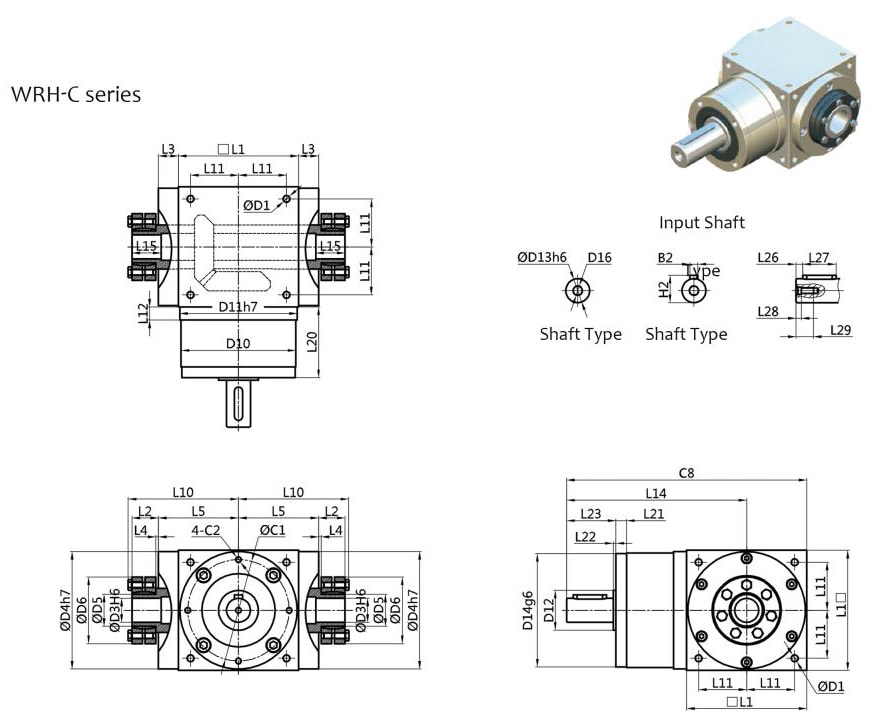

Drawings of WRH C series

structure of WRH C series Steering gear lifting and T-angle reducer

Parameters of WRH C series

Size WRH065C WRH075C WRH090C WRH110C WRH140C WRH170C WRH210C WRH240C WRH280C
D1 M4X0.7P M6X1P M6X1P M8X1.25P M10X1.5P M12X1.75P M16X2P M16X2P M16X2P
D3n6 13 14 18 22 32 40 50 55 60
D4n7 63 73 88 108 135 165 205 235 275
D5 16 16 22 25 44 50 62 68 75
D6 41 41 50 50 80 90 110 115 138
D10 62 72 86 106 104 128 160 180 200
D11h7 63 73 88 108 135 165 205 235 275
D12 15.4 20.4 25.8 35.8 49.8 59.3 79.3 92.3 102.3
D13h6 13 16 18 22 32 40 50 55 60
D14g6 62.9 72.9 87 107 103 127 158 178 198
D16 M4X0.7P M5X0.8P M5X0.8P M8X1.25P M12X1.75P M16X2P M16X2P M16X2P M20X2.5P
L1 65 75 90 110 140 170 210 240 280
L2 14 14 18 18 24 26 29 29 30.5
L3 13 14.5 15 15 15 15 20 25 25
L4 2 2 2 2 2 2 2 2 2
L5 47.5 54 62 72 87 102 127 147 167
L10 66 72.5 85 95 116.5 133.5 161.5 181.5 205
L11 27 30 36 44 55 67 85 95 110
L12 13 15 15 15 15 15 20 25 25
L14 95 120 135 155 180 215 270 310 370
L15 15 15 20 20 26 28 31 31 32.5
L20 43 52.5 55 60 60 70 90 105 120
L21 6 8 8 8 10 10 10 10 10
L22 2 2 2 2 2 2 2 2 2
L23 19.5 30 35 40 50 60 75 85 110
L26 2 2.5 3.5 4 2.5 5 2.5 2.5 5
L27 16 25 28 32 45 50 70 80 100
L28 4.5 4.8 4.8 7.2 10 12 12 12 15
L29 10 12.5 12.5 19 28 36 36 36 42
C1* 53 62 76 95 92 114 142 160 176
C2* 4XM4XL7 4XM5XL8 4XM5XL8 6XM6XL10 6XM6XL10 6XM8XL12.5 6XM8XL12.5 6XM8XL12.5 6XM10XL15
B2 5 5 6 6 10 12 14 16 18
H2 15 18 20.5 24.5 35 43 53.5 59 64
C8* 127.5 157.5 180 210 250 300 375 430 510

WRH H series Steering gear lifting and T-angle reducer

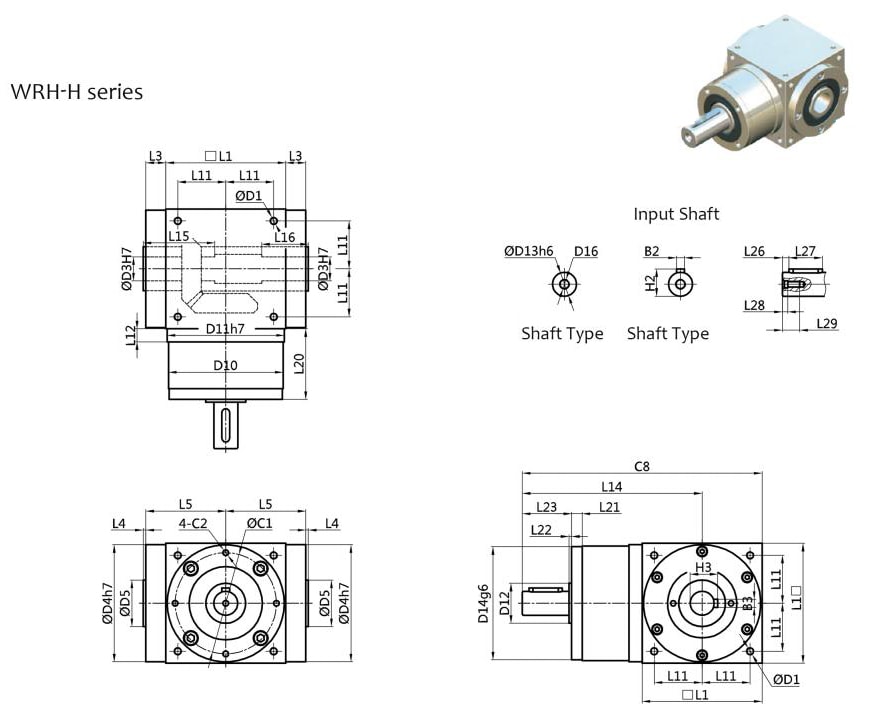

Drawings of WRH H series

structure of WRH H series Steering gear lifting and T-angle reducer

Parameters of WRH H series

size WRH065H WRH075H WRH090H WRH110H WRH140H WRH170H WRH210H WRH240H WRH280H
D1 M4X0.7P M6X1P M6X1P M8X1.25P M10X1.5P M12X1.75P M16X2P M16X2P M16X2P
D3H7 13 14 18 22 32 40 50 55 60
D4h7 63 73 88 108 135 165 205 235 275
D5 21 22 28 33 47 55 75 85 110
D10 62 72 86 106 104 128 160 180 200
D11h7 63 73 88 108 135 165 205 235 275
D12 15.4 20.4 25.8 35.8 49.8 59.3 79.3 92.3 102.3
D13h6 13 16 18 22 32 40 50 55 60
D14g6 62.9 72.9 87 107 103 127 158 178 198
D16 M4X0.7P M5X0.8P M5X0.8P M8X1.25P M12X1.75P M16X2P M16X2P M16X2P M20X2.5P
L1 65 75 90 110 140 170 210 240 280
L3 13 14.5 15 15 15 15 20 25 25
L4 2 2 2 2 2 2 2 2 2
L5 47.5 54 62 72 87 102 127 147 167
L11 27 30 36 44 55 67 85 95 110
L12 13 15 15 15 15 15 20 25 25
L14 95 120 135 155 180 215 270 310 370
L15 40 47 52 53 70 80 95 115 115
L16 30 32 35 35 50 55 65 80 80
L20 43 52.5 55 60 60 70 90 105 120
L21 6 8 8 8 10 10 10 10 10
L22 2 2 2 2 2 2 2 2 2
L23 19.5 30 35 40 50 60 75 85 110
L26 2 2.5 3.5 4 2.5 5 2.5 2.5 5
L27 16 25 28 32 45 50 70 80 100
L28 4.5 4.8 4.8 7.2 10 12 12 12 15
L29 10 12.5 12.5 19 28 36 36 36 42
C1* 53 62 76 95 92 114 142 160 176
C2* 4XM4XL7 4XM5XL8 4XM5XL8 6XM6XL10 6XM6XL10 6XM8XL12.5 6XM8XL12.5 6XM8XL12.5 6XM10XL15
B2 5 5 6 6 10 12 14 16 18
B3 5 5 6 6 10 12 14 16 18
H2 15 18 20.5 24.5 35 43 53.5 59 64
H3 15.3 16.3 20.8 24.8 35.3 43.3 53.8 59.3 64.4
C8* 127.5 157.5 180 210 250 300 375 430 510

WRH L1 series Steering gear lifting and T-angle reducer

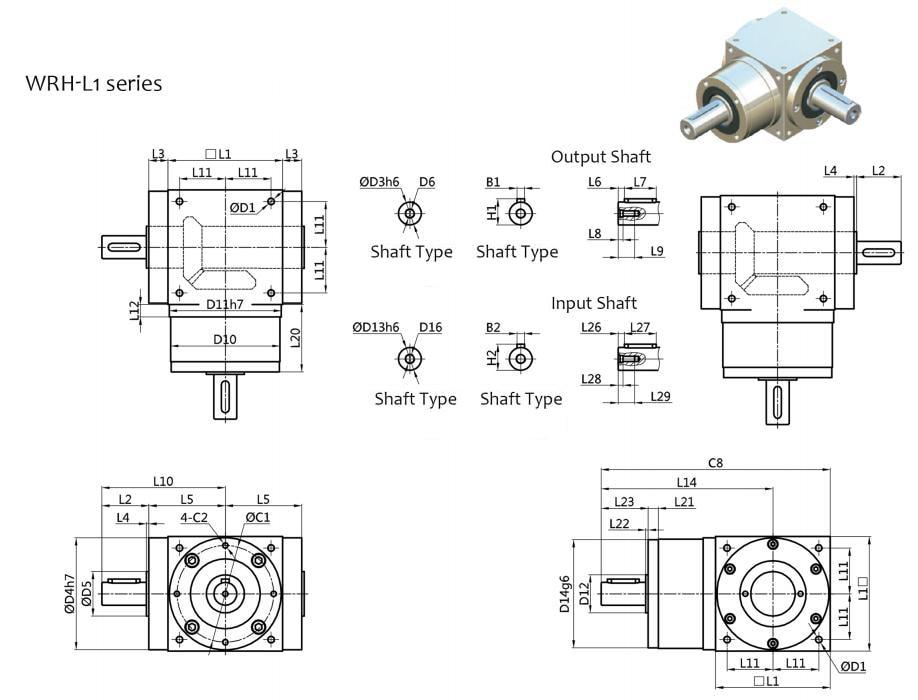

Drawings of WRH L1 series

structure of WRH L1 series Steering gear lifting and T-angle reducer

Parameters of WRH L1 series

Size WRH065L1 WRH075L1 WRH090L1 WRH110L1 WRH140L1 WRH170L1 WRH210L1 WRH240L1 WRH280L1
D1 M4X0.7P M6X1P M6X1P M8X1.25P M10X1.5P M12X1.75P M16X2P M16X2P M16X2P
D3h6 13 16 18 22 32 40 50 55 60
D4h7 63 73 88 108 135 165 205 235 275
D5 21 22 28 33 47 55 75 85 110
D6 M4X0.7P M5X0.8P M5X0.8P M8X1.25P M12X1.75P M16X2P M16X2P M16X2P M20X2.5P
D10 62 72 86 106 104 128 160 180 200
D11h7 63 73 88 108 135 165 205 235 275
D12 15.4 20.4 25.8 35.8 49.8 59.3 79.3 92.3 102.3
D13h6 13 16 18 22 32 40 50 55 60
D14g6 62.9 72.9 87 107 103 127 158 178 198
D16 M4X0.7P M5X0.8P M5X0.8P M8X1.25P M12X1.75P M16X2P M16X2P M16X2P 20X2.5P
L1 65 75 90 110 140 170 210 240 280
L2 19.5 30 35 40 50 60 75 85 110
L3 13 14.5 15 15 15 15 20 25 25
L4 2 2 2 2 2 2 2 2 2
L5 47.5 54 62 72 87 102 127 147 167
L6 2 2.5 3.5 4 2.5 5 2.5 2.5 5
L7 16 25 28 32 45 50 70 80 100
L8 4.5 4.8 4.8 7.2 10 12 12 12 15
L9 10 12.5 12.5 19 28 36 36 36 42
L10 67 84 97 112 137 162 202 232 277
L11 27 30 36 44 55 67 85 95 110
L12 13 15 15 15 15 15 20 25 25
L14 95 120 135 155 180 215 270 310 370
L20 43 52.5 55 60 60 70 90 105 120
L21 6 8 8 8 10 10 10 10 10
L22 2 2 2 2 2 2 2 2 2
L23 19.5 30 35 40 50 60 75 85 110
L26 2 2.5 3.5 4 2.5 5 2.5 2.5 5
L27 16 25 28 32 45 50 70 80 100
L28 4.5 4.8 4.8 7.2 10 12 12 12 15
L29 10 12.5 12.5 19 28 36 36 36 42
C1* 53 62 76 95 92 114 142 160 176
C2* 4XM4XL7 4XM5XL8 4XM5XL8 6XM6XL10 6XM6XL10 6XM8XL12.5 6XM8XL12.5 6XM8XL12.5 6XM8XL15
B1 5 5 6 6 10 12 14 16 18
B2 5 5 6 6 10 12 14 16 18
H1 15 18 20.5 24.5 35 43 53.5 59 64
H2 15 18 20.5 24.5 35 43 53.5 59 64
C8* 127.5 157.5 180 210 250 300 375 430 510

WRH LM/RM series Steering gear lifting and T-angle reducer

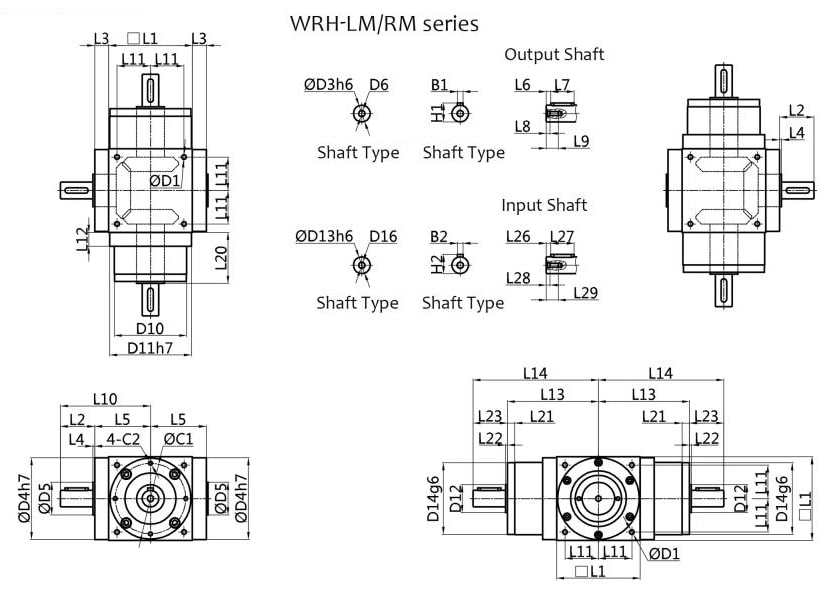

Drawings of WRH LM/RM series

structure of WRH LM series Steering gear lifting and T-angle reducer

Parameters of WRH LM/RM series

Size WRH065LM/RM WRH075LM/RM WRH090LM/RM WRH110LM/RM WRH140LM/RM WRH170LM/RM WRH210LM/RM WRH240LM/RM WRH280LM/RM
D1 M4X0.7P M6X1P M6X1P M8X1.25P M10X1.5P M12X1.75P M16X2P M16X2P M16X2P
D3h6 13 16 18 22 32 40 50 55 60
D4h7 63 73 88 108 135 165 205 235 275
D5 21 22 28 33 47 55 75 85 110
D6 M4X0.7P M5X0.8P M5X0.8P M8X1.25P M12X1.75P M16X2P M16X2P M16X2P M20X2.5P
D10 62 72 86 106 104 128 160 180 200
D11h7 63 73 88 108 135 165 205 235 275
D12 15.4 20.4 25.8 35.8 49.8 59.3 79.3 92.3 102.3
D13h6 13 16 18 22 32 40 50 55 60
D14g6 62.9 72.9 87 107 103 127 158 178 198
D16 M4X0.7P M5X0.8P M5X0.8P M8X1.25P M12X1.75P M16X2P M16X2P M16X2P M20X2.5P
L1 65 75 90 110 140 170 210 240 280
L2 19.5 30 35 40 50 60 75 85 110
L3 13 14.5 15 15 15 15 20 25 25
L4 2 2 2 2 2 2 2 2 2
L5 47.5 54 62 72 87 102 127 147 167
L6 2 2.5 3.5 4 2.5 5 2.5 2.5 5
L7 16 25 28 32 45 50 70 80 100
L8 4.5 4.8 4.8 7.2 10 12 12 12 15
L9 10 12.5 12.5 19 28 36 36 36 42
L10 67 84 97 112 137 162 202 232 277
L11 27 30 36 44 55 67 85 95 110
L12 13 15 15 15 15 15 20 25 25
L13 75.5 90 100 115 130 155 195 255 260
L14 95 120 135 155 180 215 270 310 370
L20 43 52.5 55 60 60 70 90 105 120
L21 6 8 8 8 10 10 10 10 10
L22 2 2 2 2 2 2 2 2 2
L23 19.5 30 35 40 50 60 75 85 110
L26 2 2.5 3.5 4 2.5 5 2.5 2.5 5
L27 16 25 28 32 45 50 70 80 100
L28 4.5 4.8 4.8 7.2 10 12 12 12 15
L29 10 12.5 12.5 19 28 36 36 36 42
C1* 53 62 76 95 92 114 142 160 176
C2* 4XM4XL7 4XM5XL8 4XM5XL8 6XM6XL10 6XM6XL10 6XM8XL12.5 6XM8XL12.5 6XM8XL12.5 6XM10XL15
B1 5 5 6 6 10 12 14 16 18
B2 5 5 6 6 10 12 14 16 18
H1 15 18 20.5 24.5 35 43 53.5 59 64
H2 15 18 20.5 24.5 35 43 53.5 59 64

WRH L series Steering gear lifting and T-angle reducer

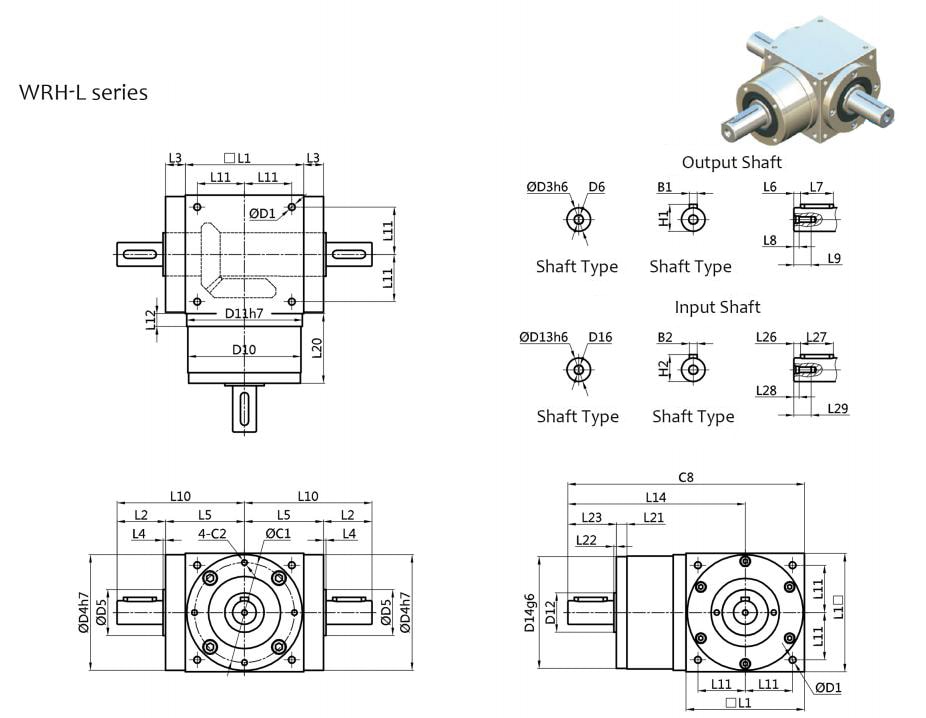

Drawings of WRH L series

structure of WRH L series Steering gear lifting and T-angle reducer

Parameters of WRH L series

Size WRH065L WRH075L WRH090L WRH110L WRH140L WRH170L WRH210L WRH240L WRH280L
D1 M4X0.7P M6X1P M6X1P M8X1.25P M10X1.5P M12X1.75P M16X2P M16X2P M16X2P
D3h6 13 16 18 22 32 40 50 55 60
D4h7 63 73 88 108 135 165 205 235 275
D5 21 22 28 33 47 55 75 85 110
D6 M4X0.7P M5X0.8P M5X0.8P M8X1.25P M12X1.75P M16X2P M16X2P M16X2P M20X2.5P
D10 62 72 86 106 104 128 160 180 200
D11h7 63 73 88 108 135 165 205 235 275
D12 15.4 20.4 25.8 35.8 49.8 59.3 79.3 92.3 102.3
D13h6 13 16 18 22 32 40 50 55 60
D14g6 62.9 72.9 87 107 103 127 158 178 198
D16 M4X0.7P M5X0.8P M5X0.8P M8X1.25P M12X1.75P M16X2P M16X2P M16X2P M20X2.5P
L1 65 75 90 110 140 170 210 240 280
L2 19.5 30 35 40 50 60 75 85 110
L3 13 14.5 15 15 15 15 20 25 25
L4 2 2 2 2 2 2 2 2 2
L5 47.5 54 62 72 87 102 127 147 167
L6 2 2.5 3.5 4 2.5 5 2.5 2.5 5
L7 16 25 28 32 45 50 70 80 100
L8 4.5 4.8 4.8 7.2 10 12 12 12 15
L9 10 12.5 12.5 19 28 36 36 36 42
L10 67 84 97 112 137 162 202 232 277
L11 27 30 36 44 55 67 85 95 110
L12 13 15 15 15 15 15 20 25 25
L14 95 120 135 155 180 215 270 310 370
L20 43 52.5 55 60 60 70 90 105 120
L21 6 8 8 8 10 10 10 10 10
L22 2 2 2 2 2 2 2 2 2
L23 19.5 30 35 40 50 60 75 85 110
L26 2 2.5 3.5 4 2.5 5 2.5 2.5 5
L27 16 25 28 32 45 50 70 80 100
L28 4.5 4.8 4.8 7.2 10 12 12 12 15
L29 10 12.5 12.5 19 28 36 36 36 42
C1* 53 62 76 95 92 114 142 160 176
C2* 4XM4XL7 4XM5XL8 4XM5XL8 6XM6XL10 6XM6XL10 6XM8XL12.5 6XM8XL12.5 6XM8XL12.5 6XM10XL15
B1 5 5 6 6 10 12 14 16 18
B2 5 5 6 6 10 12 14 16 18
H1 15 18 20.5 24.5 35 43 53.5 59 64
H2 15 18 20.5 24.5 35 43 53.5 59 64
C8* 127.5 157.5 180 210 250 300 375 430 510

Application Industry

Suitable for a wide range of applications

Cooperative Robot

Cooperative Robot

Multi-articular machine

Laser Cutting Machine

Laser Cutting Machine

Machine tool,Grinding mach-ines

PARALLEL MANIPULATOR

PARALLEL MANIPULATOR

Scara robots,spider hand...

INDUSTRIAL ROBOT

INDUSTRIAL ROBOT

Manipulator,axis robot etc

HUMANOID ROBOT

HUMANOID ROBOT

Bionic robot,walking robots

AGV CAE

AGV CAE

Warehouse logistics AGV car

MACHINE TOOL

MACHINE TOOL

Pipe bending machine...

CNC Carving Machine

CNC Carving Machine

Denture carving and printing

EXTERNAL ROBOTS

EXTERNAL ROBOTS

rehabilitation bobot...

Factories of Fubao Mechanic Tech

Fubao reducer workshop
Fubao reducer workshop
Production workshop
Fubao RV Reducer E workshop
Link: Fubao Mechanical >> WRH Steering Gear Lifting and T-angle Reducer

Quote Now

Related Reducers

Application Cases

Product Lineup

Contact

+8613622620394

+86-769-85333197
[email protected]

Hot Sale

Company News

Tags

Table of Contents

Home
Home

Home

Email
[email protected]

Contact us

Contact
Customized Request
